MFZ350B Edge Banders

5 Function Auto Edge Banding Machine

Auto Edge Banding Machine

Which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.

jiantou

Saving you time is our motivation

Our products include panel saw, boring machine, edge banding machine, automatic panel saw, CNC processing center, carving machine series and so forth, which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

104

feed wheel

105

cleaning device

106

two rounds pressing

MFZ350B 5 Function Auto Edge Banding Machine

Auto Edge Banding Machine

Details

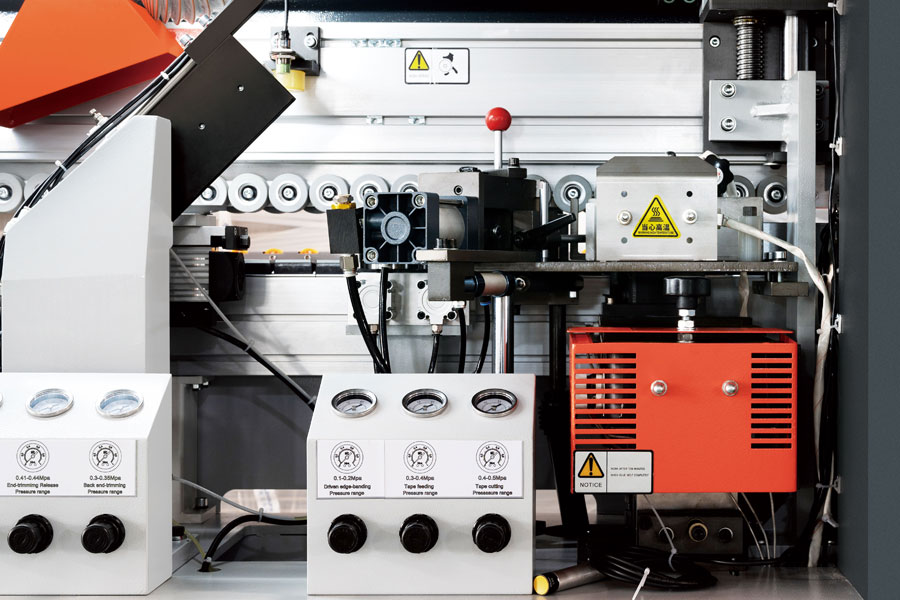

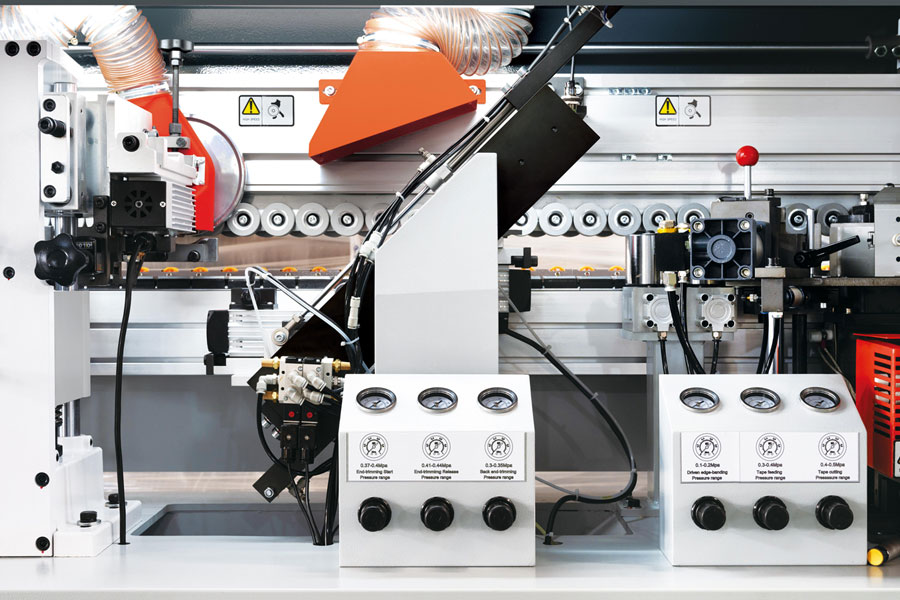

Precision linear guide structure, can cut the end of the minimum 6cm plate. Two 0.37kw motors, frequency 200hz, speed: 12000rpm. Equipped with motor manual rotation device for Angle adjustment for cutting out excess front and rear end film. Automatic tracking by mold and high frequency electrode fast cutting mechanism to ensure smooth cutting surface.

Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly.
The scraping mechanism used for removing the tool marks left by trimming and cutting process, to ensure the trimming plates smoothly.
The electric lamp automatically opens and closes, and automatically heats the end face of the plate to ensure the edging effect and improve the edging effect in cold environment.

Technology Data

Total power 8.49kw
Overall dimensions 2975 x 685x 1245mm
Feed speed 14.3m/min
The thickness of the sheet meta 10-60mm
Sheet metal width ≥60mm
Length of panel ≥120mm
Sealing tape thickness 0.4-2mm
Work pressure 0.7MPa
Weight 890kg
