MFZ850A2

Automatic Flexible Edge Banding Machine

Pre-milling, Pre-heating, Gluing, End trimming, Pneumatic fine trimming, Profiling, Double pneumatic scarping, Cutting edge , Flat scraping, Cleaning, Double Buffing, Grooving
get free quote

MFZ850A2 Automatic Flexible Edge Banding Machine

jiantou

LIVE- DEMO

Contact

Callback service

Saving you time is our motivation

Our products include panel saw, boring machine, edge banding machine, automatic panel saw, CNC processing center, carving machine series and so forth, which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

Fast glue pressing system

5

Fast glue pressing system

Double pneumatic edge scraping device

8

Double pneumatic edge scraping device

Double motorizing polishing

14

Double motorizing polishing

MFZ850A2 Automatic Flexible Edge Banding Machine

Details

Two glue pots using five rounds of pressing, standard with scraping film.

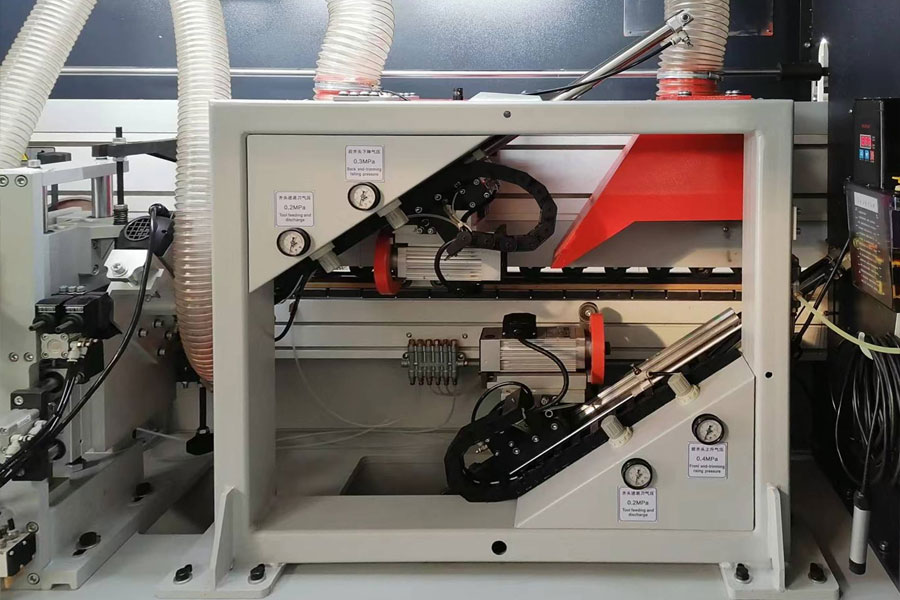

Precision linear guide structure, can cut the end of the minimum 4cm plate. Two 0.37kw motors, frequency 200hz, speed: 12000rpm. Equipped with motor manual rotation device for Angle adjustment for cutting out excess front and rear end film. Automatic tracking by mold and high frequency electrode fast cutting mechanism to ensure smooth cutting surface.

According to the thickness of the edge tape automatic switch, used to repair processing plate edge sealing strip up and down the excess part of the edge sealing material, to ensure that the upper and lower parts of the trimming plate smooth.

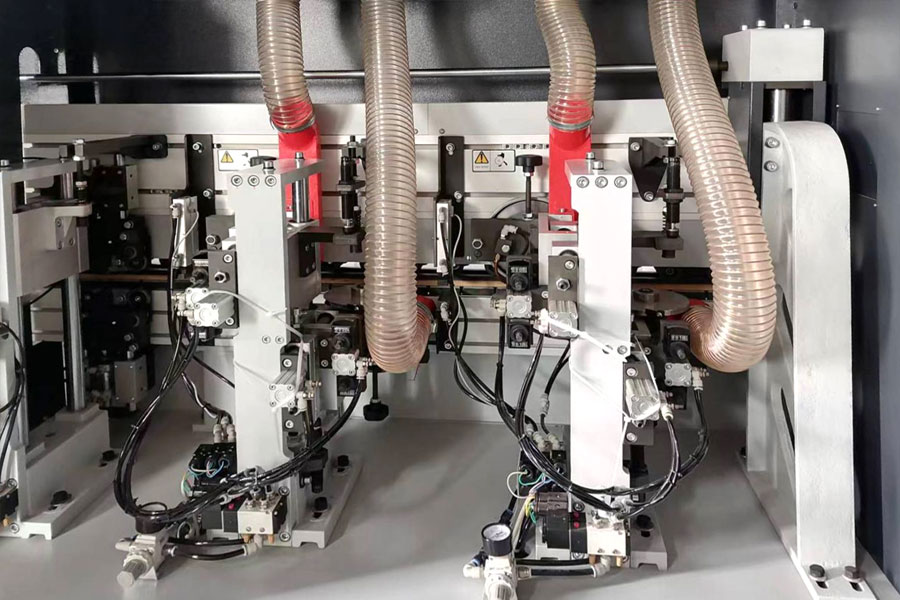

UNISUNX patented technology, high precision copying to ensure the finished product effect; Can repair both sides of the fillet, double motors to repair the Angle copying, each motor power 0.3kw, frequency 200hz, speed 12000rpm; Planar connecting rod mechanism, two copy milling cutter, make the end face of the plate more smooth and beautiful; Can also track the repair edge, according to the needs of the repair of different shapes of the edge.

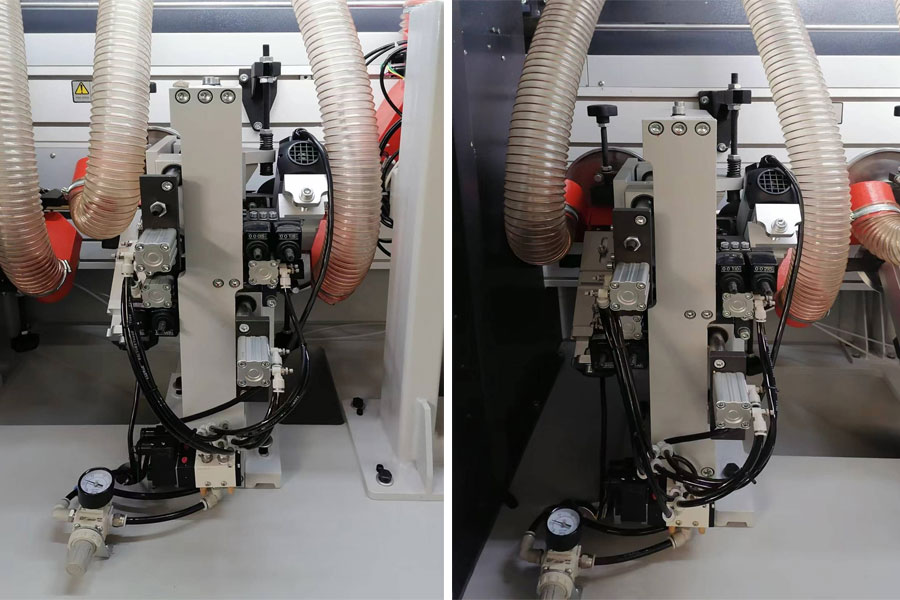

Remove the pre-cut PVC film on the milling marks, eliminate the edge of the non-linear motion of the cutting process caused by the ripple marks, pneumatic control, automatic regulation.

Automatic wire breaking after scraping, avoid filamentous PVC winding, affect the edge sealing effect, improve the cleaning of the sheet after edge sealing, pneumatic control.

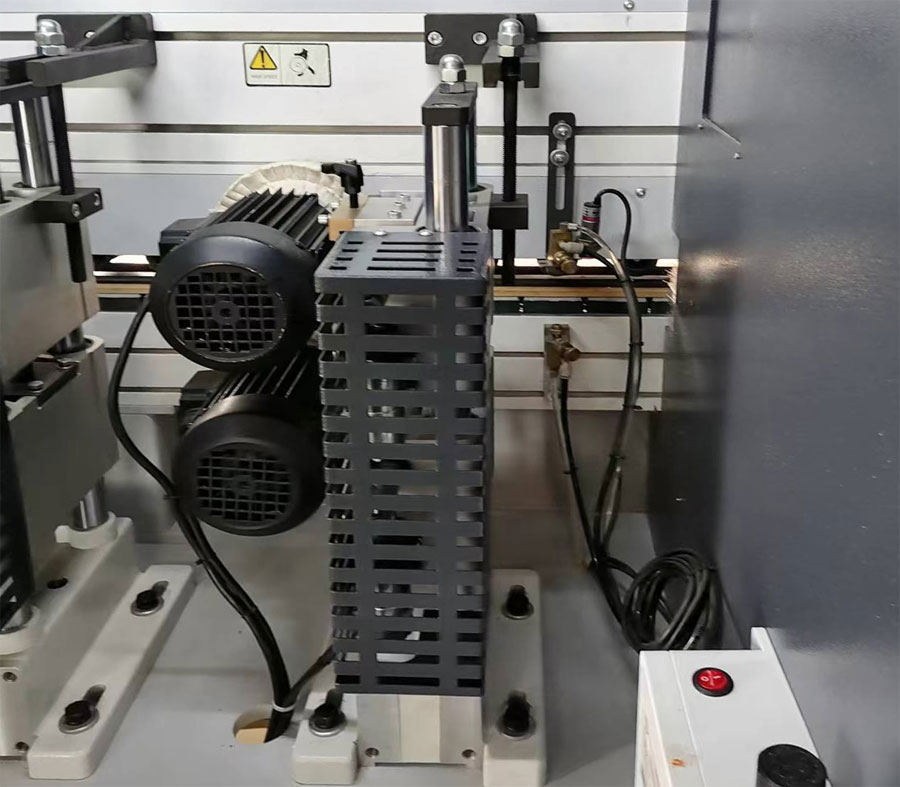

Remove residual glue, make the surface of the plate more beautiful. Further optimize the trimming effect, according to the plate thickness automatic adjustment.

Remove separation agent and residual glue to ensure clean surface.

Input voltage 3~380v, 50hz. With motor braking function of independent inverter control, phase sequence protection device. All equipment and electrical appliances meet the relevant national standards, standard with Delta converter, standard with a line of international brand low-voltage electrical appliances.

Technology Data

Total power37.35kw
Overall dimensions12310 x 2185 x 2020mm
Feed speed8-33m/min
The thickness of the sheet meta10-60mm
Sealing tape thickness0.4-3mm
Sheet metal width≥80mm
Work pressure6MPa
Weight5660kg
