SMV8D-XP Panel saw

Motorizing up/down for main saw and scoring saw

Saving you time is our motivation

Our products include panel saw, boring machine, edge banding machine, automatic panel saw, CNC processing center, carving machine series and so forth, which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

xijie1

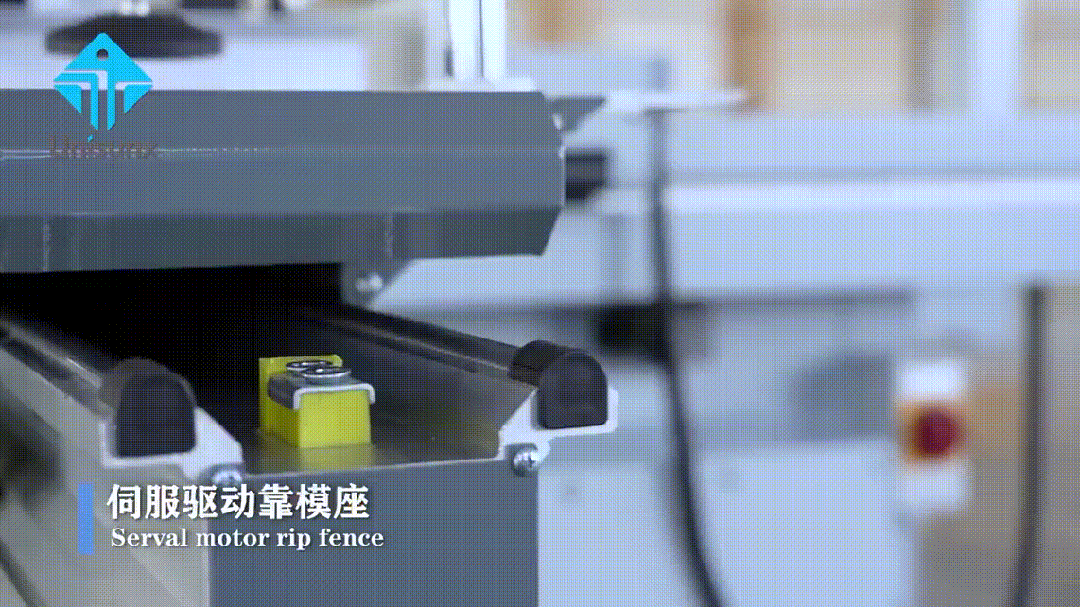

Serval motor rip fence

xijie2

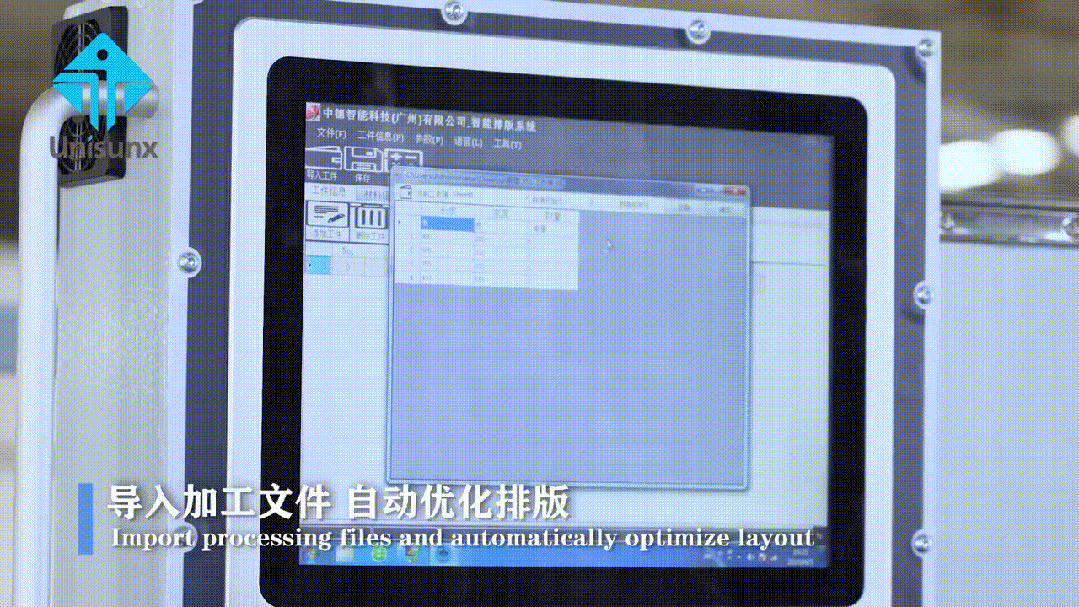

Industrial control machine can optimize the typesetting software

xijie4

Motorized up/down saw blade

SMV8D-XP Panel saw

  • Motorizing up/down for main saw and scoring saw

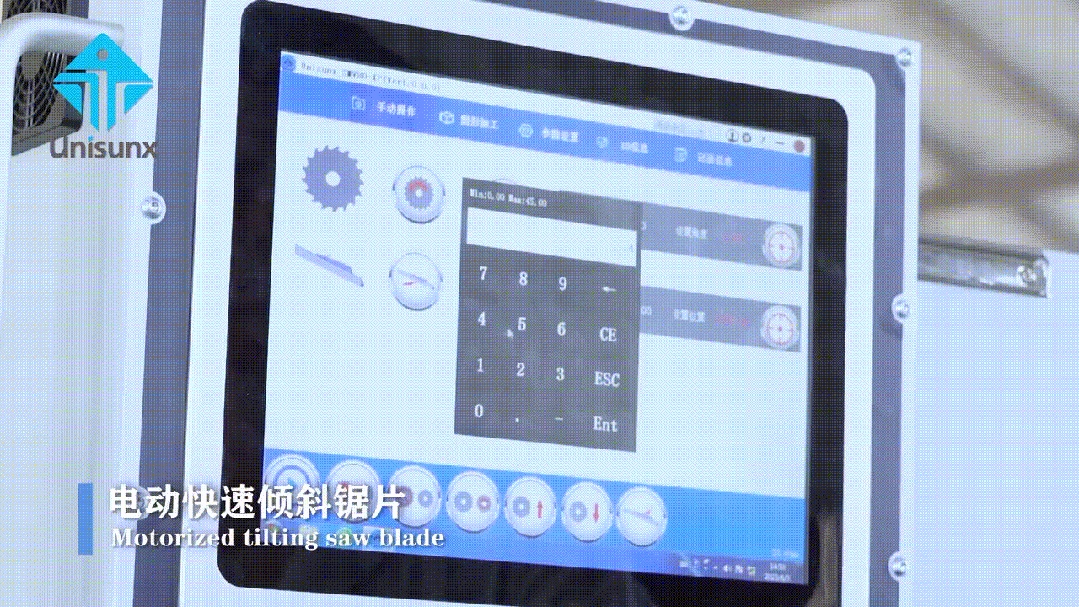

  • Electrical tilting for 45 degree
  • Electrical rip fence
  • Type A protection hood
  • LEUCO saw blade
  • PC control with optimization software
  • Maximum main saw blade diameter 400mm
  • Pressure unit

Technology Data

guide shaft spindle 50mm
max saw blade 350mm
dimension of slidng table 3800×435mm
gross cut capacity 3200mm
width of cut between saw blade and rip fence 1250mm
height of cut of ∮300mm at 90゜ 80mm
saw blade diameter 300mm  (∮250-∮400mm)
scoring saw blade diameter 120mm
main spindle diameter ∮30mm
scoring spindle diameter ∮20mm
speed of main saw spindle 4000/6000r/min
speed of scoring saw blade 8000r/min
main motor 5.5kw
soring saw moor 0.75kw
Net weight 1080kgs
gross weight 1200kgs
overall size 3350*3600*900mm
