UK90DZT CNC NESTING MACHINE

1.13.2kw CC spindle +Drilling packages

Saving you time is our motivation

Our products include: Panel saw, edge banding machine, reciprocating saw series, over-edging machine, CNC Nesting Machine(CNC Wood Cutting Machine), carving machine series and so forth, which are exported to more than 50 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. It has established complete sales system (more than 120 dealers). Over yeas of experience in competitions in domestic and overseas markets, our brand has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

91

13.2kw CC spindle +Drilling packages

92

Syntec/Delta control systems and driving systems

85

7.5kw vacuum table

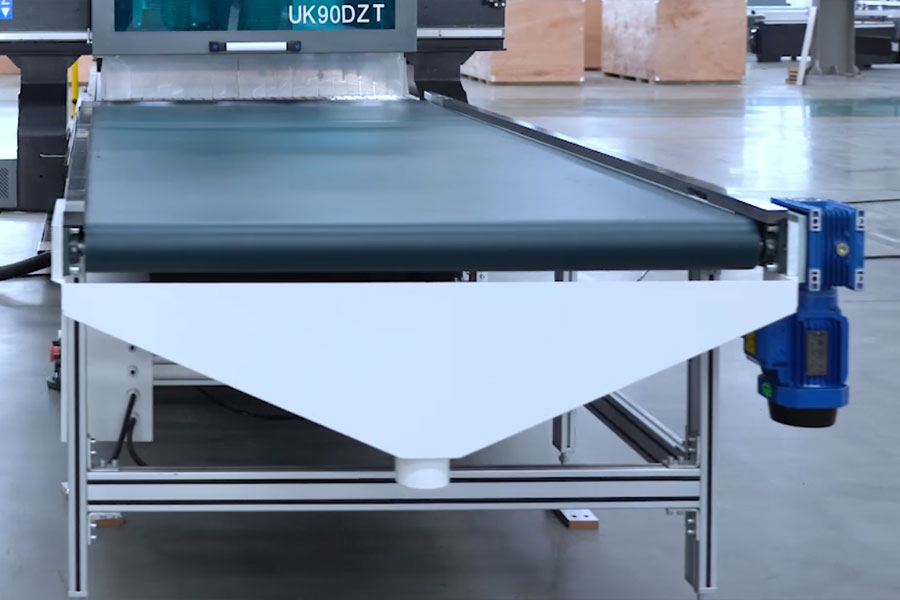

UK90DZT CNC Nesting Machine

CNC NESTING MACHINE
  • Heavy fuselage mechanism,special steel composite frame,high speed processing stability.
  • High-speed cutting processing,using F63 Spindle ,double the efficiency ,Max. 18-25m/min.
  • Ultra-high speed,starting and stopping,speed:118m/min,accelerating:7ms.
  • The machining accuracy of comparable metal CNC is less than 0.1mm diagonal and 0.03mm repeated positioning.
  • Support the XML format documents.

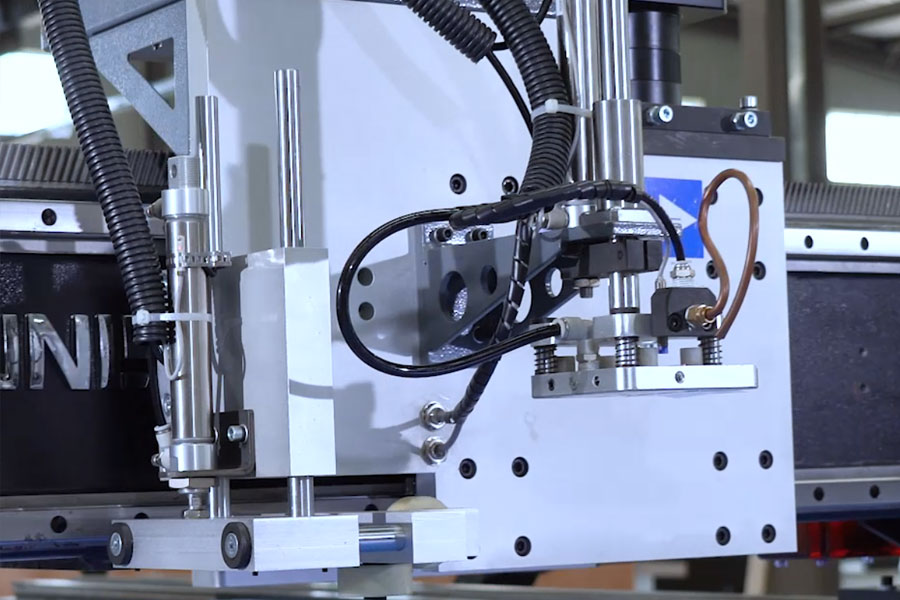

Details

Schneider low voltage electrical components,Shanghai Echu wires,Delta transducer/driver, Airtec pneumatic components

Technology Data

Model name UK90DZT
Working size (X×Y×Z) 1220×2800×200mm
Spindle motor power 1×13.2KW spindle +drilling package
Tool changer 12 knives
Spindle speed 0-24000rpm/min
Max. Processing speed 25m/min
Max. Operating speed 118m/min
Control system Syntec M3 Bus control system
Driving system Inovince 1.8kw servo motor
Vacuum table 7.5kw
Overall dimensions 10300×2300×2400mm
Net weight 4500kgs
